Product Information

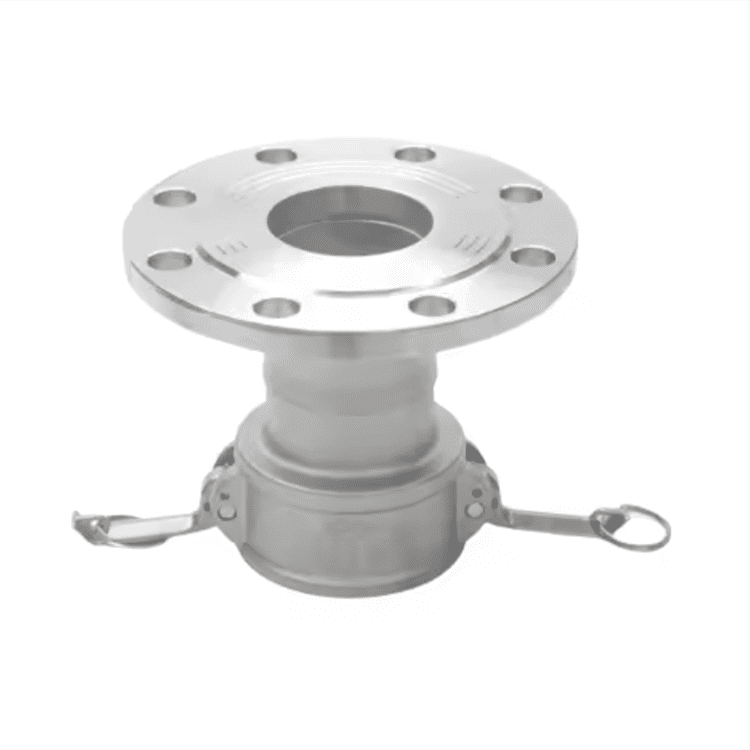

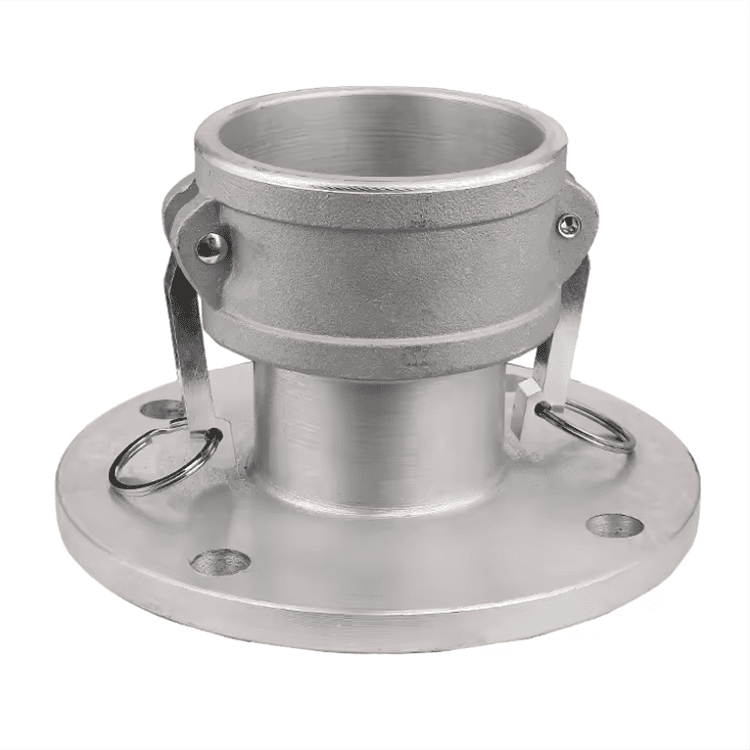

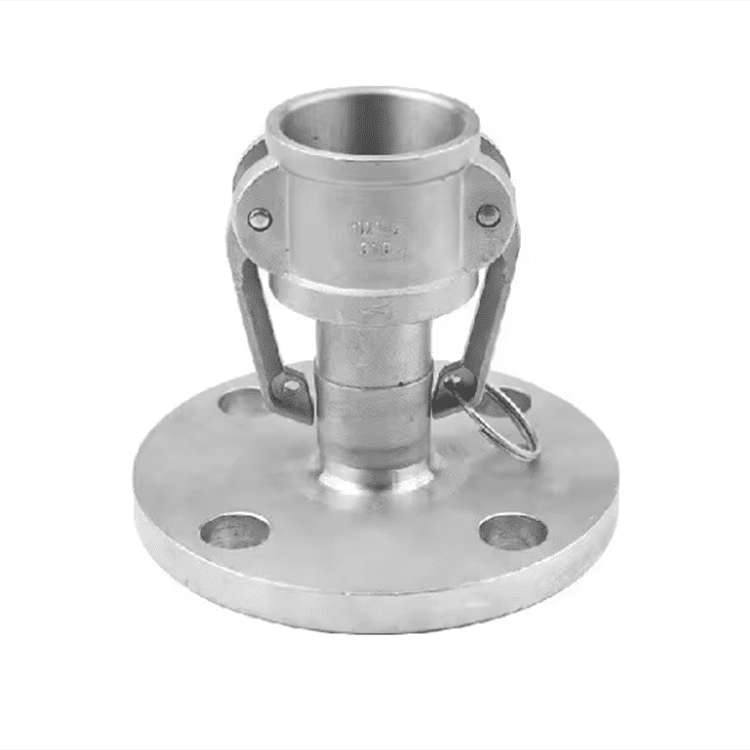

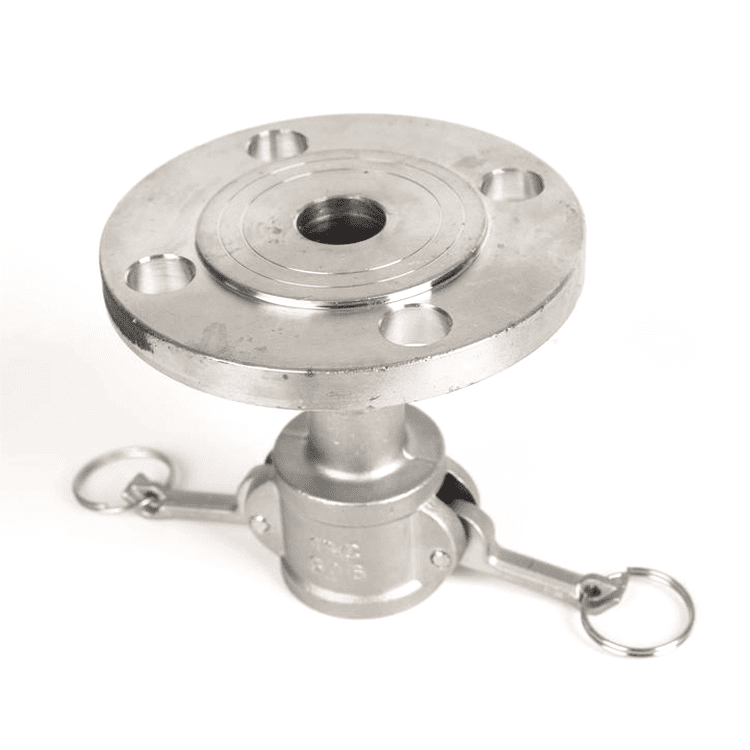

Stainless steel quick coupling C type with flange is a connecting device, mainly used in production equipment or storage and transportation system of the hose joints, mainly as a temporary takeover for cleaning or miscellaneous use, but also can be used for fire extinguishing, gas, water, petrol, heavy oil, paraffin, hydraulic oil, fuel oil, refrigeration oil, acidic and alkaline liquids and inert gases. The structure of this type of coupling adopts the principle of eccentricity to implement the brake locking, the whole press moulding, beautiful appearance, good corrosion resistance, easy to operate. There are various types of stainless steel quick couplings, including A-type, B-type, C-type, D-type, E-type, F-type and so on. The specifications mainly include DN15, DN20, DN25, DN32, DN40, DN50, DN65 The specifications are mainly DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100 and so on. When in use, it is easy to dismantle and install, by pulling down the plate handle can be easily dismantled, the connection needs to be matched with the same specification of the male connector and female connector. Sealing materials include NBR, polyurethane, Viton, PTFE, ethylene propylene rubber, etc., which ensure the sealing and durability of the connection.

Product Advantage

1、Saving time and labour when dismantling and connecting the oil circuit through the quick coupling, the action is simple, saving time and manpower.
2、Saving oil when breaking off the oil line, the single valve on the quick coupling can close the oil line, avoiding the loss of oil hydraulic pressure.
3、Corrosion resistance, high temperature resistance, pressure resistance the use of superior stainless steel materials, can be maintained in a variety of harsh environments to maintain a good working condition, to ensure the reliability and stability of the connection.
4、Quick connection only simple operation can complete the connection and disconnection, improve work efficiency.
Multiple functions It can realise the connection of pipes of different diameters, applicable to various piping systems, and at the same time, it has the features of anti-leakage, anti-vibration, anti-explosion, etc. to ensure the connection’s safety and reliability.
